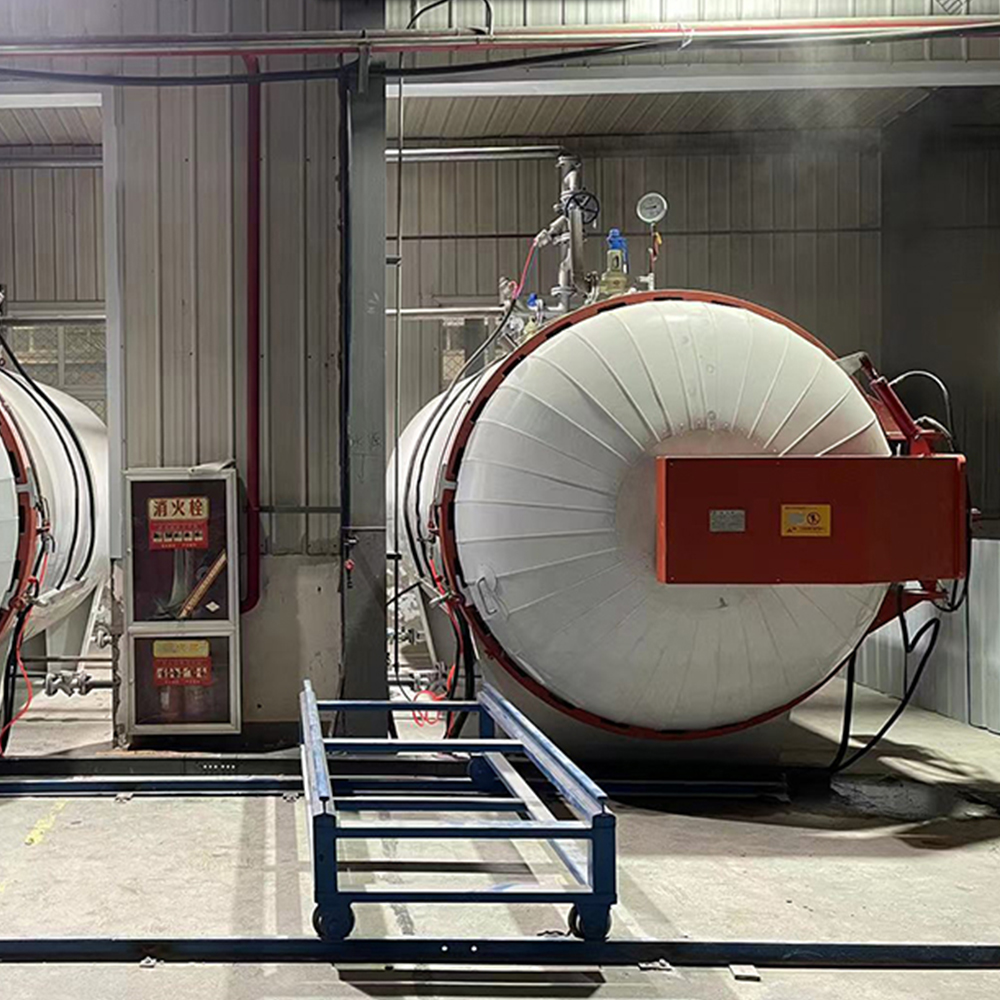

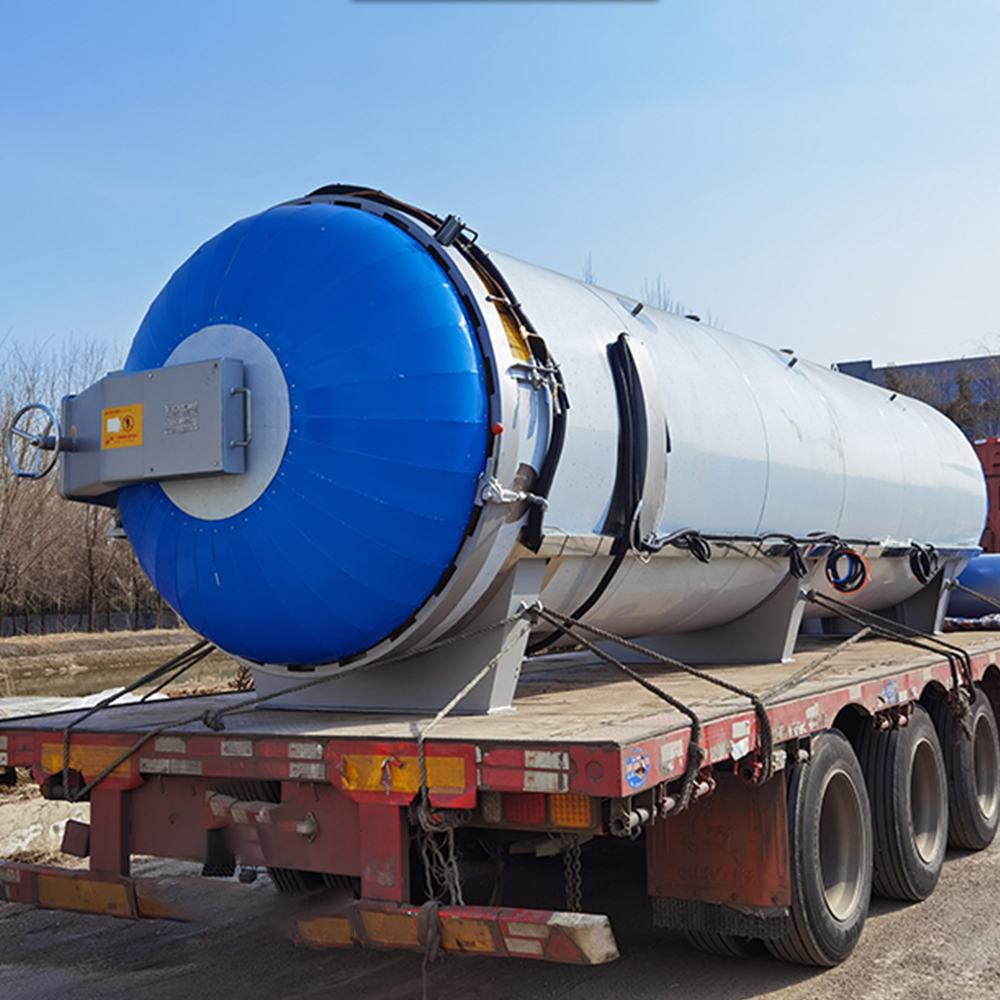

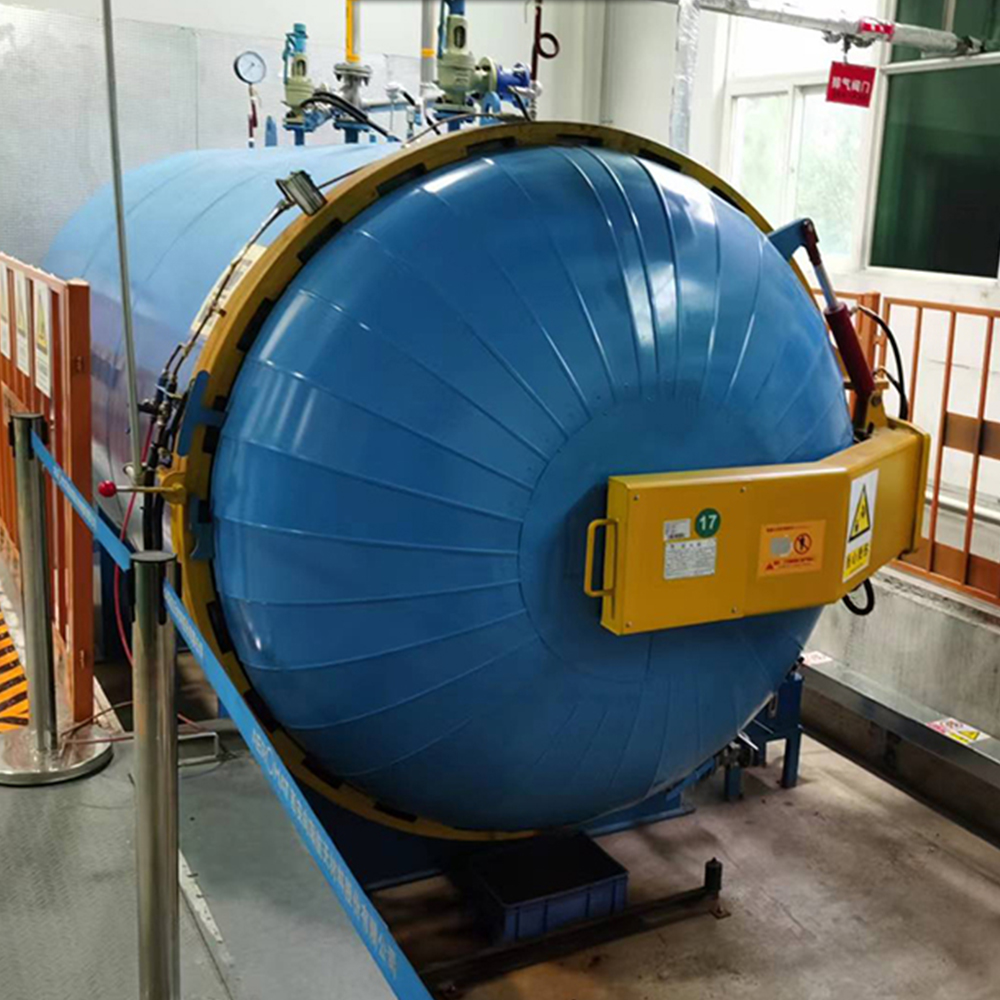

Horizontal Electric Heating Rubber Roller Vulcanization Autoclave, Small Vulcanizing Equipment, Stainless Steel Vulcanization Autoclave

$0.00

inquiry
Category:

Description

Description

Effective Inner Volume: 8 m³

Width: 1500 mm

Type: Horizontal Vulcanization Autoclave

Effective Length: 6000 mm

Operation Mode: Electric Heating Operation

Intelligent Automatic Control System

Vulcanization autoclaves are generally equipped with an intelligent automatic control system. Temperature sensors collect real-time temperature data inside the tank and transmit it to the control cabinet for display and processing. The system can automatically adjust heating and heat preservation status according to preset temperature ranges to ensure accurate and stable internal temperature.

When the temperature is lower than the set value, the heating valve will open automatically; when the temperature reaches the set value, the heating valve will close automatically, realizing energy-saving and efficient heat retention.

Sealing Design

The tank mouth and sealing ring of the vulcanization autoclave adopt dedicated sealing structures such as enclosed rubber sealing rings. It isolates internal air from the external atmosphere and reduces heat exchange and heat loss.

Double-layer External Thermal Insulation

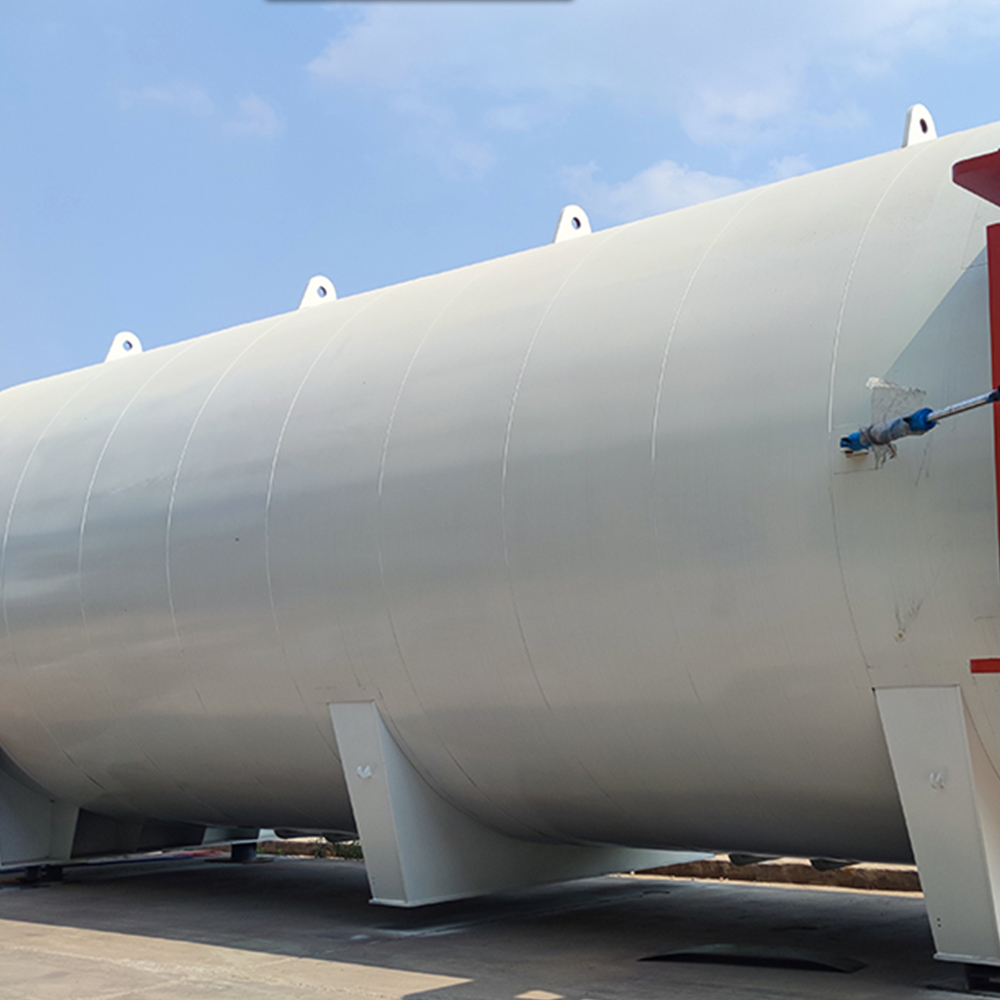

Some vulcanization autoclaves adopt a double-layer external insulation design, with two layers of thermal insulation materials wrapped on the outside of the tank body. This design further enhances heat preservation effect, reduces heat loss and cuts energy consumption.

Vulcanization Autoclave Classification & Electric Heating Type Introduction

Vulcanization autoclaves are classified into electric heating vulcanization autoclaves and steam heating vulcanization autoclaves according to different heating methods.

Electric Heating Vulcanization Autoclave

It is a piece of equipment that supplies thermal energy for vulcanization of rubber, silicone and other products through direct or indirect heating by electric heating elements such as electric heating tubes.

Features

  • Direct heating mode, high temperature control precision and excellent temperature uniformity;
  • No external steam source required, flexible installation, suitable for sites without steam supply;
  • Energy-saving and high-efficiency with high thermal efficiency, supporting intelligent temperature control;
  • High power consumption, electricity cost is relatively higher compared with steam heating type;
  • Simple structure and convenient maintenance, suitable for small & medium batch production or high-precision vulcanization requirements.



HIGH PRODUCTION EFFICIENCY

Vulcanization autoclaves complete the vulcanization procedure of rubber products within a short time to boost production capacity and satisfy mass production demands. Besides, its high automation level cuts manual operation time and labor intensity, further lifting overall production efficiency.

HEATING EVENLY

Vulcanization autoclaves of all heating types deliver outstanding uniform heating performance. Matched with an integrated high-temperature & high-pressure fan, high-temperature air circulates moderately back and forth inside the tank via air duct plates to spread heat evenly, eliminating temperature dead zones in the whole chamber.

HIGH DEGREE OF AUTOMATION

Equipped with intelligent digital temperature controllers and pressure sensors, vulcanization autoclaves precisely regulate temperature, pressure and vulcanization duration. Staged programs including temperature rise, heat preservation and vulcanization can be set separately to match the vulcanization technology of different products, and multiple sets of vulcanization process parameters are storable.

HIGH SAFETY

Multiple safety interlock devices are installed, including automatic pressure safety interlock, manual safety interlock, overpressure alarm, automatic safety valve, automatic pressure control and manual exhaust valve. The tank door remains locked tightly if any internal pressure exists during operation, completely eliminating safety hazards caused by misoperation.

Diameter: 1500 mm

Weight: 2000 kg

Custom Processing: Available

Working Pressure: 0.58 MPa

Category: Vulcanization Autoclave

Working Temperature: 150℃

Main Motor Power: 5.5 kW

Overall Dimension: 1.5 m × 6 m
